The purpose of this test box is to monitor the input voltage and current drawn by the device under test and convert it to a 0-10V signal that any standard data logger interpret.
The combination of power information with thermal data can be critical for finding the root causes of variations in test data.
Utilizing separate sensor boxes for input voltage and current. This box features a standard power input cord enabling easy connectivity to AC power sources, a standard NEMA 5-15 for the output to the DUT, and a separate cord for powering the sensors. The terminal block provides an easy way to connect the 0-10 VDC outputs depending on the test conditions.

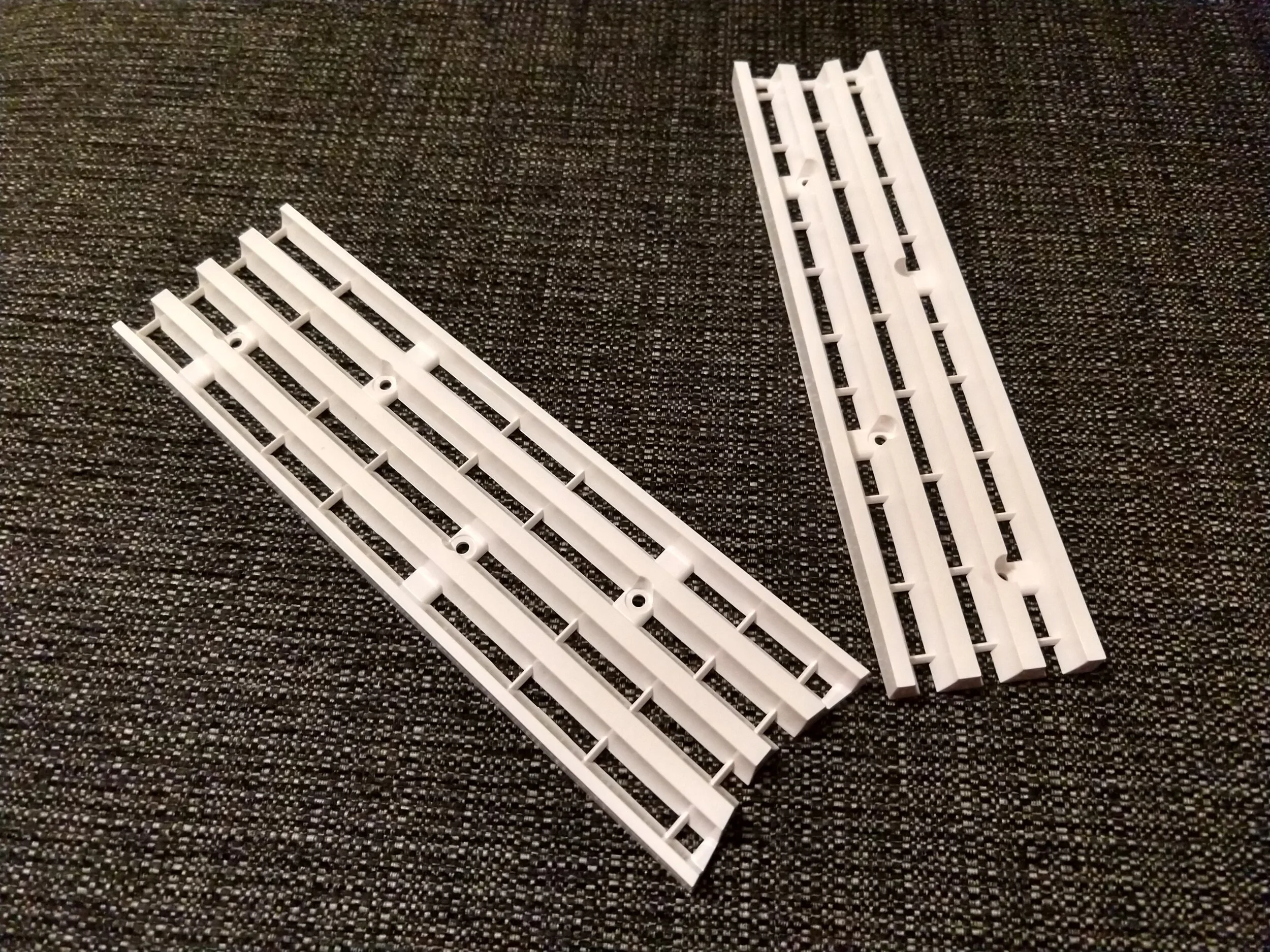

Pictured are a variety of injection molded parts using polycarbonate and acrylic.

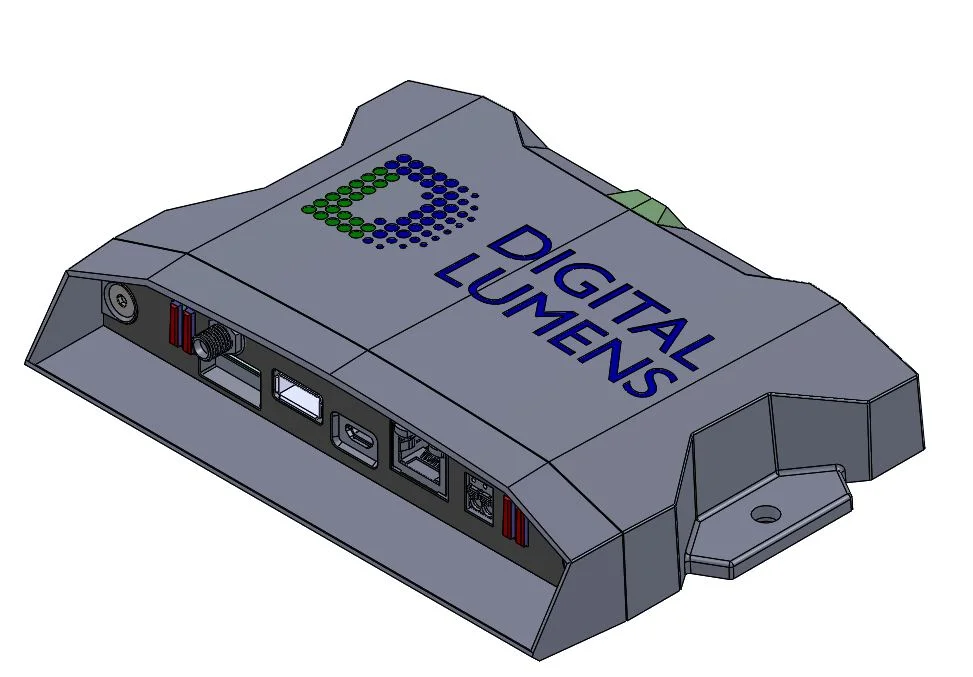

Assembly showing the exterior of the gateway. Including the indicator optics and face plate inlay.
Showing the press fit optic snap and O-Ring seal.
